Hose Pump

Date 16/01/2025

Product overview

Hose pump is a positive displacement pump. The suction action is realized through pressing shoe alternately pressing and releasing the special hose. When it pressing the hose, extrude the fluid out. At the same time, when it leaves, the hose rebounds to form negative pressure, which will absorb more fluid from the inlet end. The pressing shoe will 100% closed extrusion of the hose, thus providing accurate metering accuracy and pressure performance. The fluid only contacts with hose, no need any sealing.



Performance data

Pump model
Inlet/outlet size(Inch)
Connection type
Flow rate (L/revolution)
Max outlet pressure (bar)
Standard Motor (KW)
FK10
3/8″
Pagoda
0.02
12
0.37
FK15
1/2″
Pagoda
0.08
12
0.55
FK20
3/4″
Pagoda
0.15
12
0.55
FK25
1″
Flange
0.3
16
1.1
FK32
1-1/4″
Flange
0.6
16
1.5
FK40
1-1/2″
Flange
1.3
16
2.2
FK50
2″
Flange
2.9
16
4
FK65
2-1/2″
Flange
6.7
16
5.5
FK80
3″
Flange
11.7
16
11
FK100
4″
Flange
20
16
15
FK125
5″
Flange
33.3
16
22



Product features

1.Flow and power can adjust, low energy consumption.

2.Can dry running, suction ability up to 9.5m

3.Stable flow rate, accurate and repeatable measurement capability.

4.Easy to convey high viscosity, high solid content medium

5.Fit for shear sensitive medium

6.Rubber hose, strong corrosion resistance

7.No seals, valves, diaphragm, immersed rotor, stator or piston

8.Good sealing, no leakage, no pollution

Pumpbody and constructure

1. The pump size from 3/8″ to 5″.
2. 3/8″ to 3/4″ be aluminum pumpbody, from 1″ to 5″ be cast iron pumpbody.
3. the whole pumpbody strong and durable, can use many years.

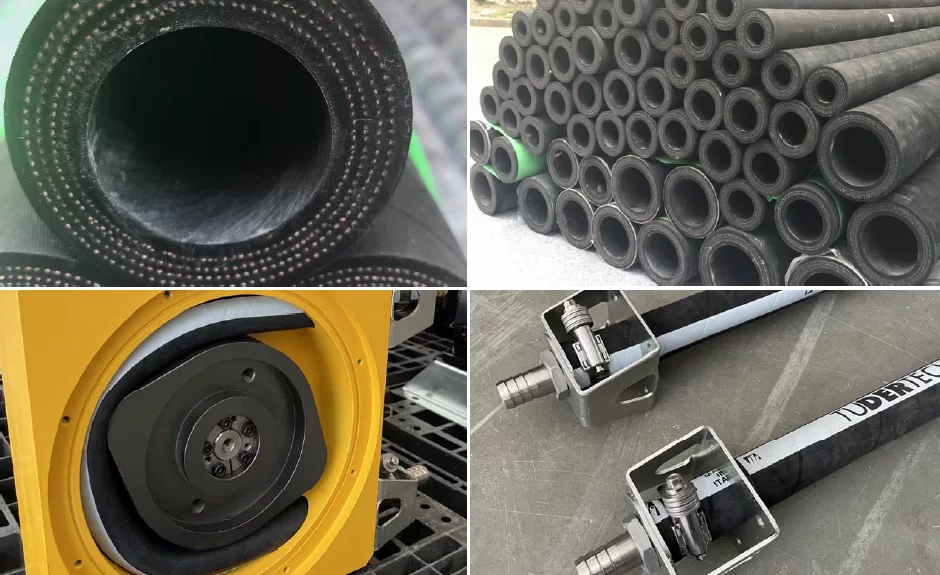

Hose characteristics

1. Hose is the core component of hose pump, which determines the performance, durability and efficiency of hose pump.
2. Our hose import from ITALY, in good quality and life time.
3. The hose with nyln reinforcing and wearing resistance surface layer.

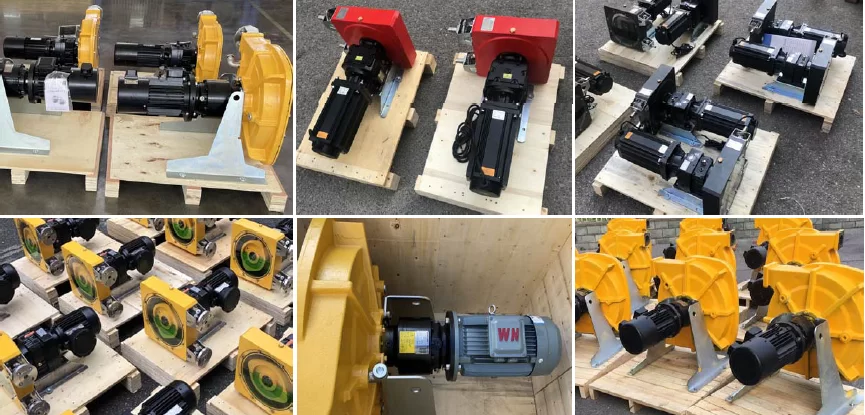

Motor and reducer

1. In order to enhance the hose life time, normally, we will keep the pump out speed be 40~45rpm (for FK10~FK65),FK80~FK125 will keep the out speed about 30rpm.
2. Normally, the pump with variable frequency motor, 4-pole and 1450rpm. The motor fan’ speed be 2900rpm
3. The motor also can be Standard motor, ATEX motor, Variable frequency motor, synchronous motor etc.
4. Motor and reducer can be one-piece, also can supply with seperated motor and reducer
